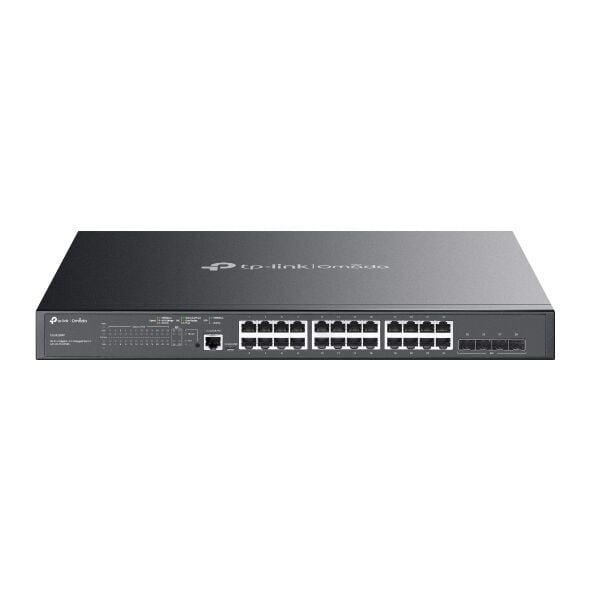

Omada SG3428MP 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
56.142,06 ₺
Bulut Erişimli Yazılım Tanımlı Ağ (SDN)
Birden fazla sitedeki erişim noktalarınızı, anahtarlarınızı ve ağ geçitlerinizi tek bir arayüzden uzaktan yönetin.
Çoklu Uygulama Senaryoları
† Bu işlevler Omada SDN Denetleyicisinin kullanımını gerektirir. Sıfır Dokunma Sağlama, Omada Bulut Tabanlı Denetleyicinin kullanımını gerektirir. Omada Bulut Tabanlı Denetleyici tarafından desteklenen tüm modelleri bulmak için Omada Bulut Tabanlı Denetleyici Ürün Listesine gidin.
*PoE bütçe hesaplamaları laboratuvar testlerine dayanmaktadır. Gerçek PoE güç bütçesi garanti edilmez ve müşteri sınırlamaları ve çevresel faktörler nedeniyle değişecektir.
**İSS özellikleri yalnızca bağımsız modda yapılandırılabilir.
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | • 24× 10/100/1000 Mbps RJ45 PoE+ Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Sayısı | 2 |
| Fiziksel Güvenlik Kilidi | √ |
| Güç Kaynağı | 100-240 V AC~50/60 Hz |
| PoE Portları (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port) • Power Budget: 384 W* |
| Boyutlar ( W X D X H ) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Montaj | Rack Mountable |
| Maks. Güç Tüketimi | 480.1 W (110 V/60 Hz) (with 384 W PD connected) |
| Max Heat Dissipation | 1637.14 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| PERFORMANS | |
|---|---|
| Anahtarlama Kapasitesi | 56 Gbps |
| Paket Yönlendirme Hızı | 41.66 Mpps |
| MAC Adres Tablosu | 16K |
| Paket Buffer Belleği | 12 Mbit |
| Jumbo Frame | 9 KB |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 ve L2+ Özellikleri | • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile |
| Gelişmiş Özellikler | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features**: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow |
| VLAN | • VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ • Voice VLAN |
| Erişim Kontrol Listesi | • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN |
| Güvenlik | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode • 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| YÖNETİM | |
|---|---|
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İçeriği | • SG3428MP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Sistem Gereksinimleri | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Ortam | • Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
